鈑金機箱加工的驗收標準有哪些?

發布時間:2023-07-29 來源:http://xingthink.com/ 瀏覽量:

鈑金機箱加工是對機箱機柜加工方法的一種統稱,是實現機箱機柜產品的加工方法。鈑金機箱加工除了對機箱機柜的結構工藝有要求外,對產品的表面處理要求也很?chē)?yán)格。
Sheet metal chassis processing is a general term for the processing methods of chassis and cabinets, which is the processing method for achieving chassis and cabinet products. The processing of sheet metal chassis not only requires the structural process of the chassis and cabinet, but also has strict requirements for the surface treatment of the product.
對于鈑金機箱加工來說,產品的良好形象也是很重要的,這需要通過加工中的規范操作以及后期的表面處理來實現。
For the processing of sheet metal chassis, a good image of the product is also important, which needs to be achieved through standardized operations during processing and subsequent surface treatment.
鈑金機箱加工中對各工序和部件的驗收也是有標準的,一定要注意的幾點:
There are also standards for the acceptance of various processes and components in the processing of sheet metal chassis. The following points must be noted:
1、鈑金機柜不允許有肉眼可見傾斜或局部歪、扭現象存在。框架立柱與底座垂直度為小于1.5mm。檢測時以底座上表面為基準,以立桿上端內沿面為測量點。
1. Sheet metal cabinets are not allowed to have visible tilting or local tilting or twisting. The verticality between the frame column and the base is less than 1.5mm. During the inspection, the upper surface of the base is used as the reference, and the inner edge surface of the upper end of the upright pole is used as the measurement point.
2、頂框與底座平行度為1小于1mm。監測點為底座上表面及頂框下表面,且互為基準。也可以通過測量六面之對角線的長度,相差不超過2.5mm來檢測。有中隔板者,頂框與底座平行度可放寬1.5mm,中隔板與頂框或底座平行小于1mm。

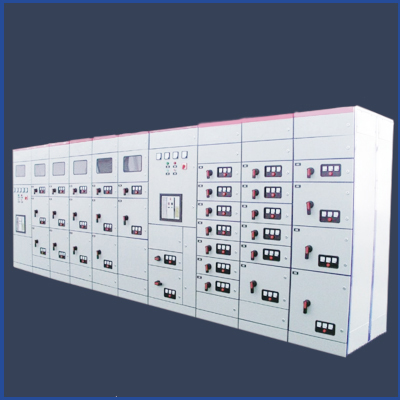

濟南機箱機柜
2. The parallelism between the top frame and the base is less than 1mm. The monitoring points are the upper surface of the base and the lower surface of the top frame, and are mutually referenced. It can also be detected by measuring the length of the diagonal of the six sides, with a difference of no more than 2.5mm. For those with a middle partition, the parallelism between the top frame and the base can be relaxed to 1.5mm, and the parallelism between the middle partition and the top frame or base can be less than 1mm.
3、上、下圍框的對角線之差的值小于1.5mm。
3. The absolute value of the difference between the diagonal lines of the upper and lower bounding boxes is less than 1.5mm.
4、立柱不能有扭曲現象,各立柱與上、下圍框相連的兩端交界線與圍框相鄰平面的平行度為小于0.5mm。
4. The columns should not be twisted, and the parallelism between the intersection lines of each column and the upper and lower bounding boxes and the adjacent planes of the bounding boxes should be less than 0.5mm.
5、支撐插箱的滑道,同一層的左、右滑道所組成的工作面相對于底座上表面的平行度為1mm,且應保證插箱裝入后相鄰兩面板之間間隙之差的值不超過0.6mm。
5. The working surface composed of the left and right slides on the same layer supporting the plug-in box should have a parallelism of 1mm relative to the surface of the base, and the absolute difference in gap between adjacent panels after the plug-in box is installed should not exceed 0.6mm.
制作過程中的合規操作,給后期的表面處理帶來了便利,不需要修修補補,通過噴漆或者噴塑處理就能實現良好的視覺效果,同時能有效的延長產品的使用壽命。
The compliant operation during the production process brings convenience to the surface treatment in the later stage, without the need for repair. By spraying paint or plastic, good visual effects can be achieved, and the service life of the product can be effectively extended.
